Wimshurst Static Machine Physics Electrostatic Generator Electricity Tesla Attention:
The Color of this item is changed to Light Blue.Please make sure you know before you bid.
Thank you very much!

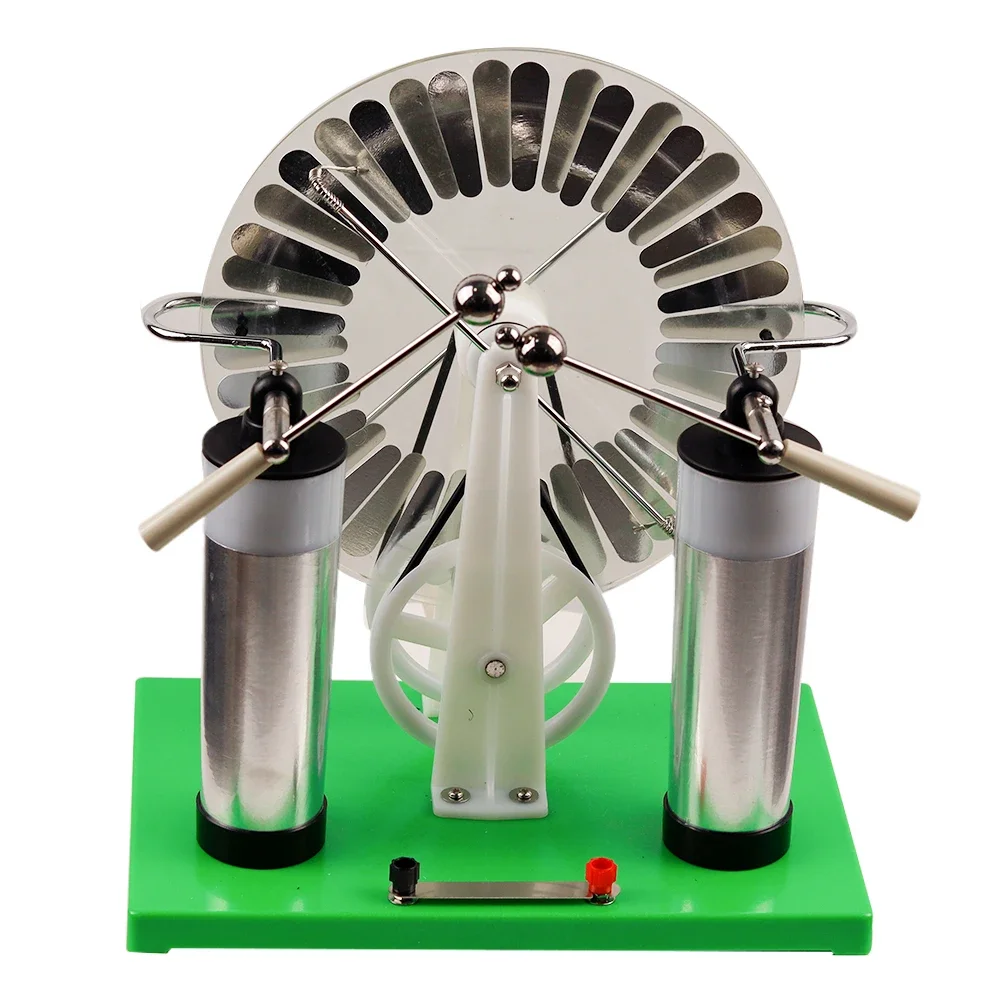

Item Description:
1.The two plates are supported in two rigid uprights and driven by belt in opposite direction.
2.They are heavy, high resistance plastic with sectors of aluminium sheet.
3.Two leyden jars (condensers) made form corning glass and aluminium foil.
4.The whole body is mounted on a plastic base nicely polished.
Specification:

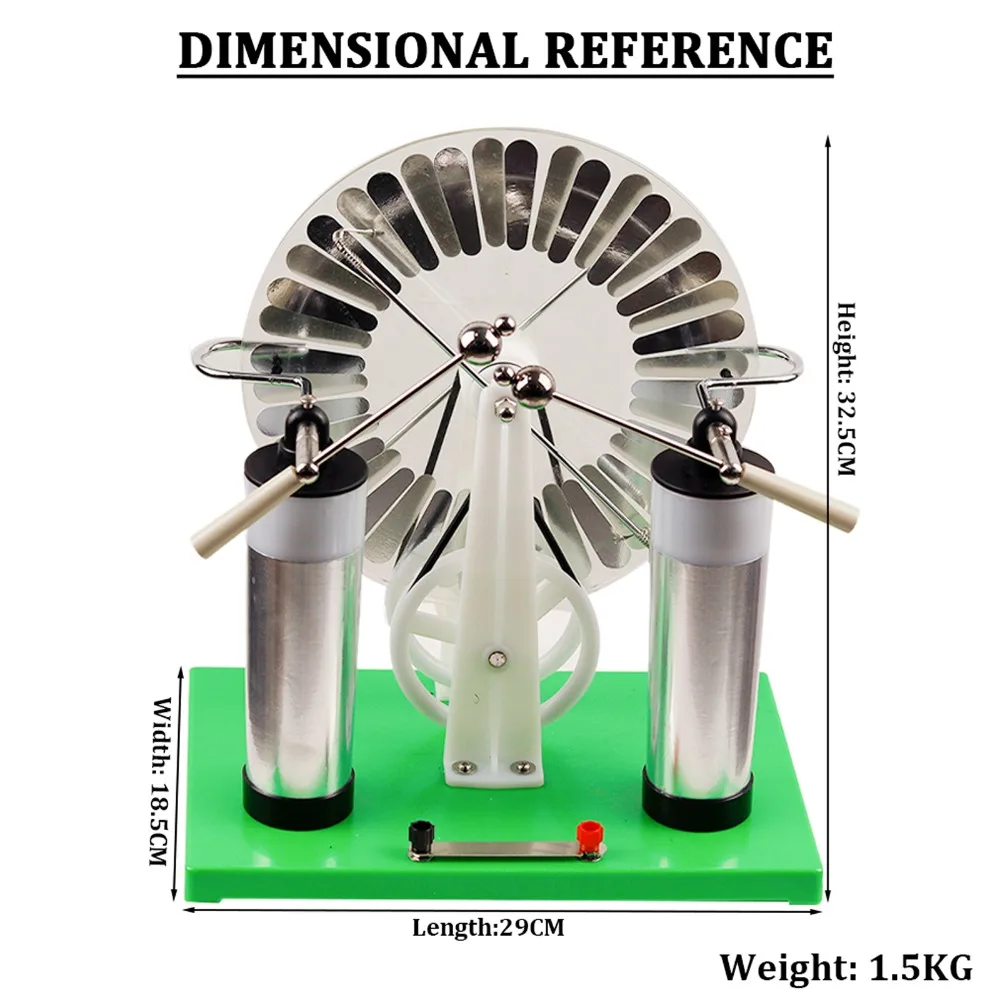

Size(Length x Width x Height): 28.5 x 20 x 33cm
Disk Dia.: 24cm
Package incluldes:
1 x Electrostatic Generator

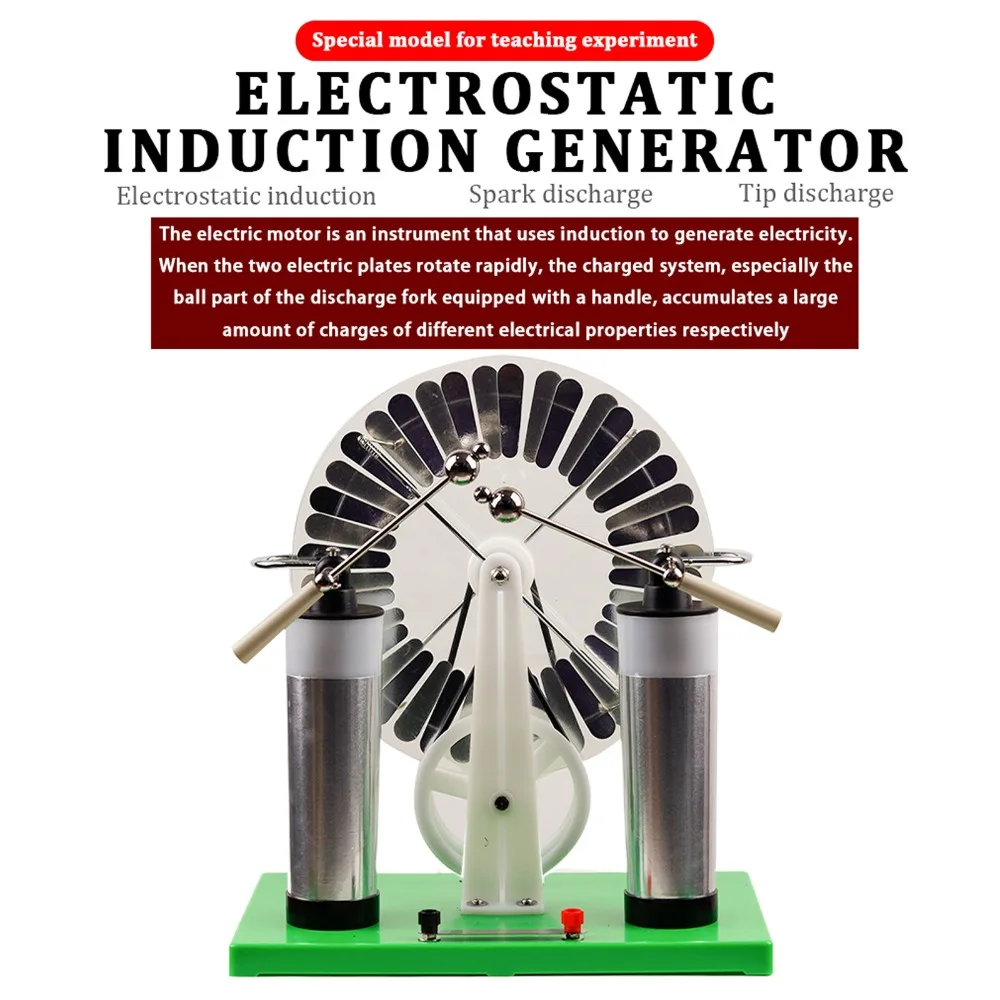

Principle:
The operating principle of the machine is based on two counter-rotating disks made of insulating
material. Each disk has several metal segments attached to it, called sectors. As the sectors pass
one another, they induce a charge imbalance on one another. This imbalance is drained off at the
collecting electrodes.

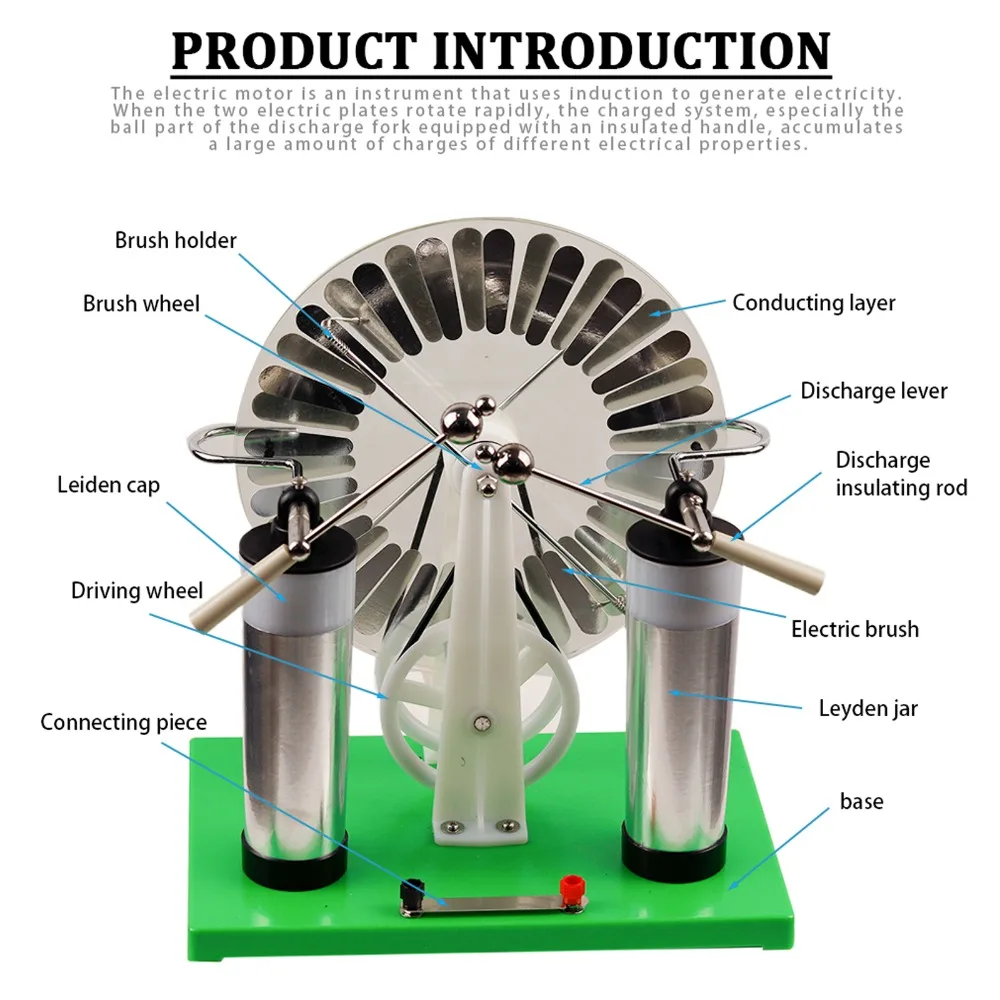

Construction:
A number of metal foil sectors are pasted on an acrylic disc. Two set of brushes are mounted on the
charge collectors – one on the front and another on rear disc. When the discs are rotated, the brushes
collect the electrostatic charge of the metal foil which is transferred and stored in the Leyden jar capacitor.
When a very high voltage is achieved, electrostatic breakdown occurs and spark between the electrodes
is seen and heard.
